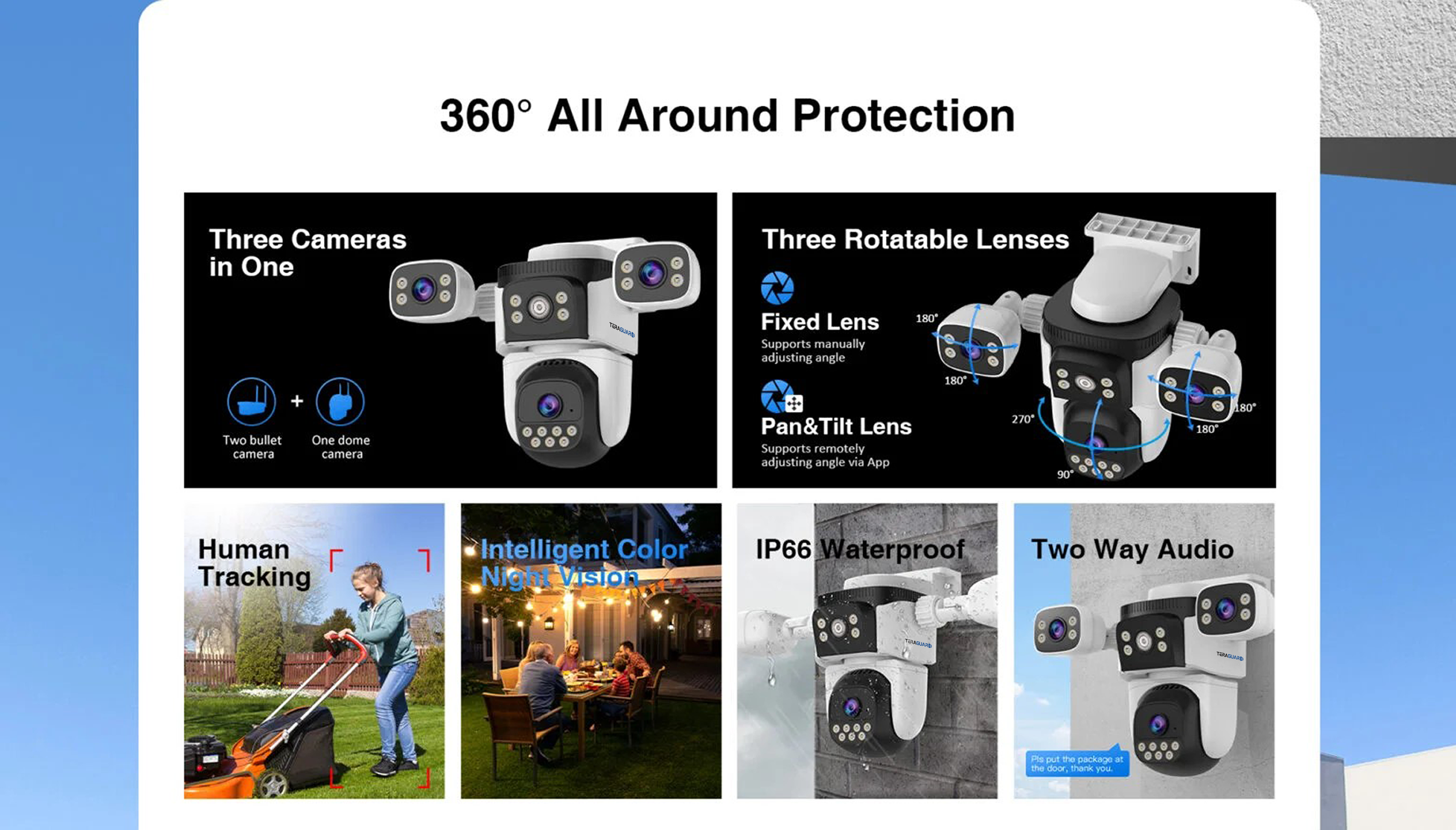

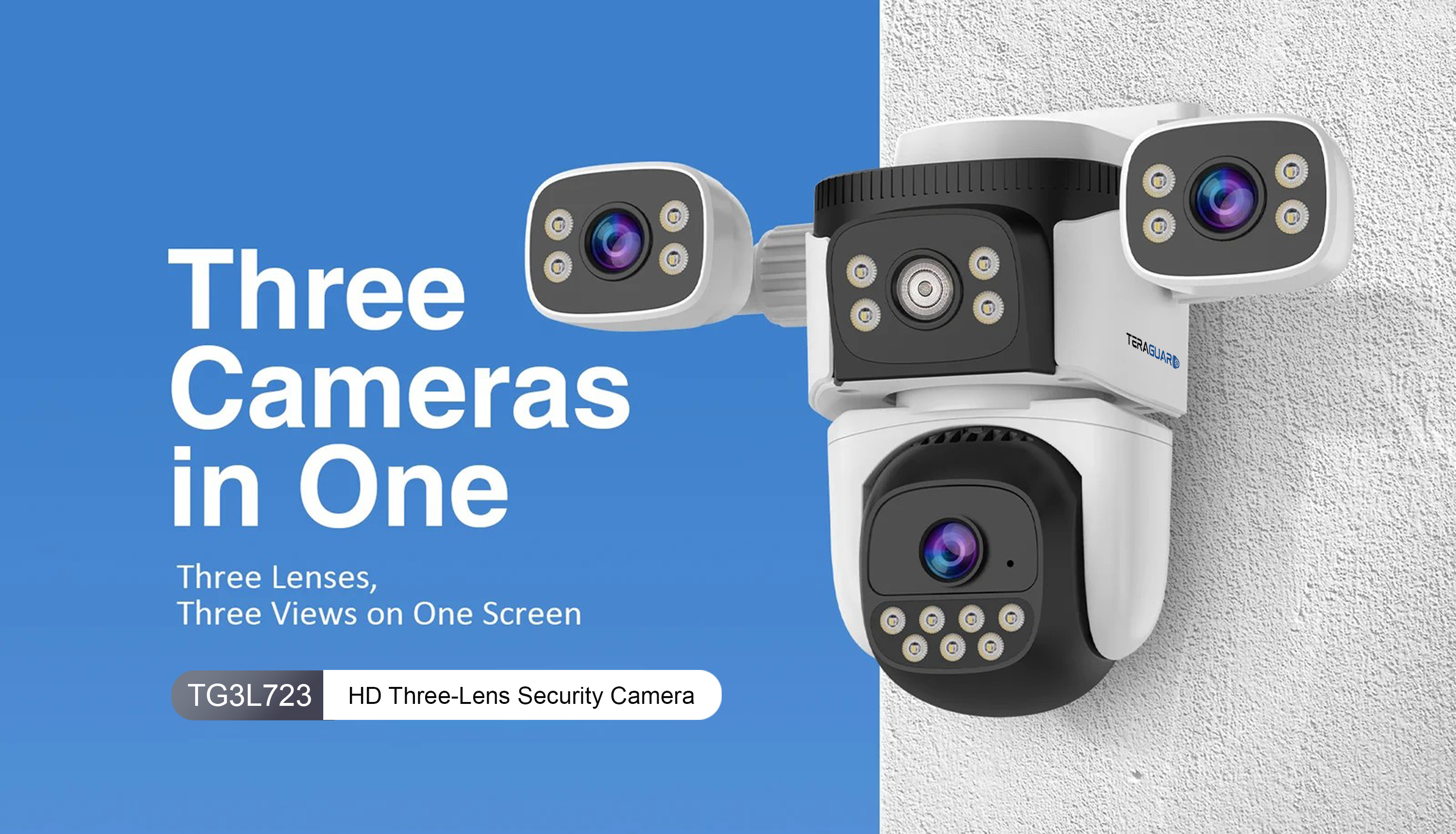

| ✮Three views, monitor with no blind spots | ||

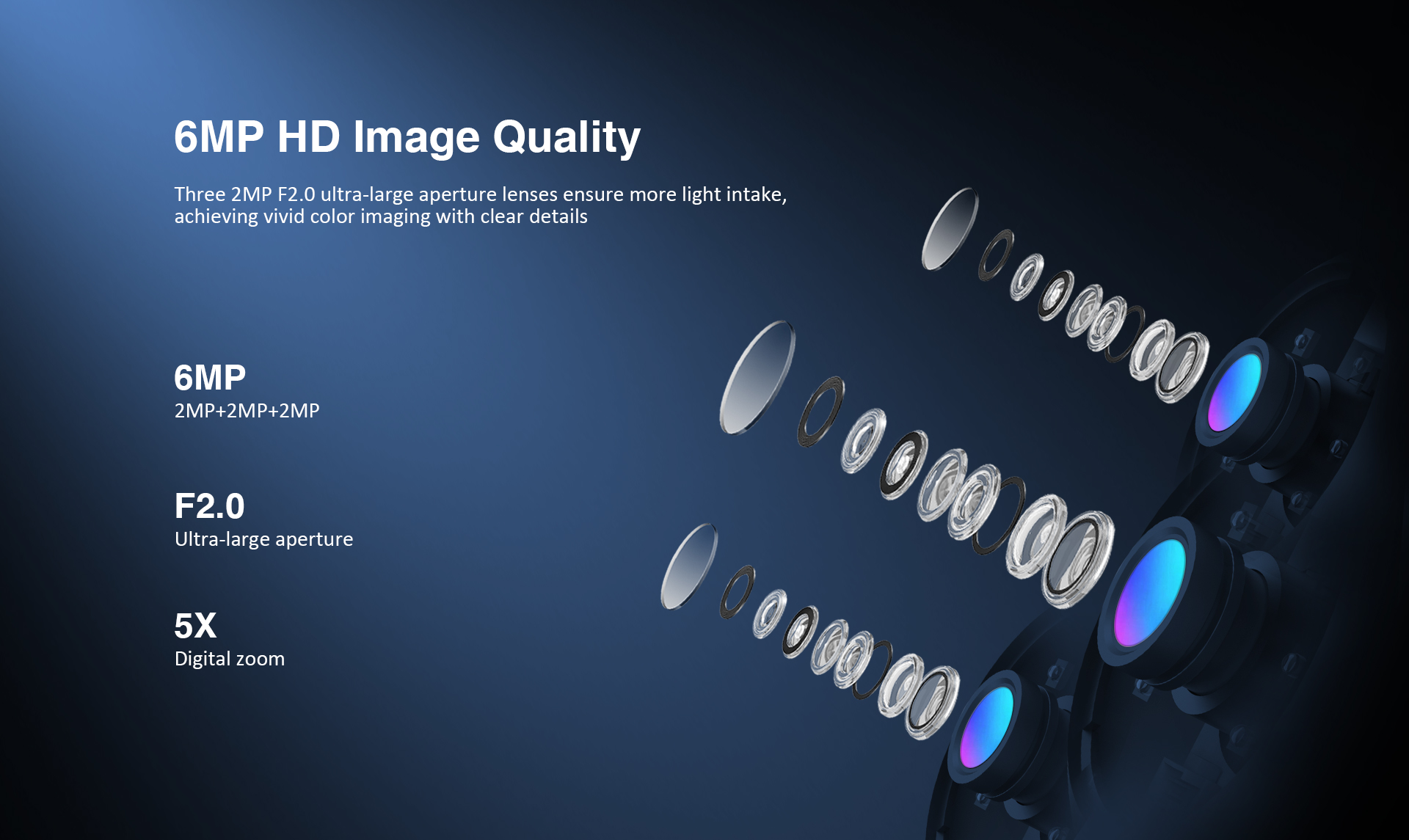

| ✮F2.0 large aperture, more light inputs, clearer night vision | ||
| ✮ISP image processing technology, preserving true colors | ||
| ✮Human detection, real time alerts | ||

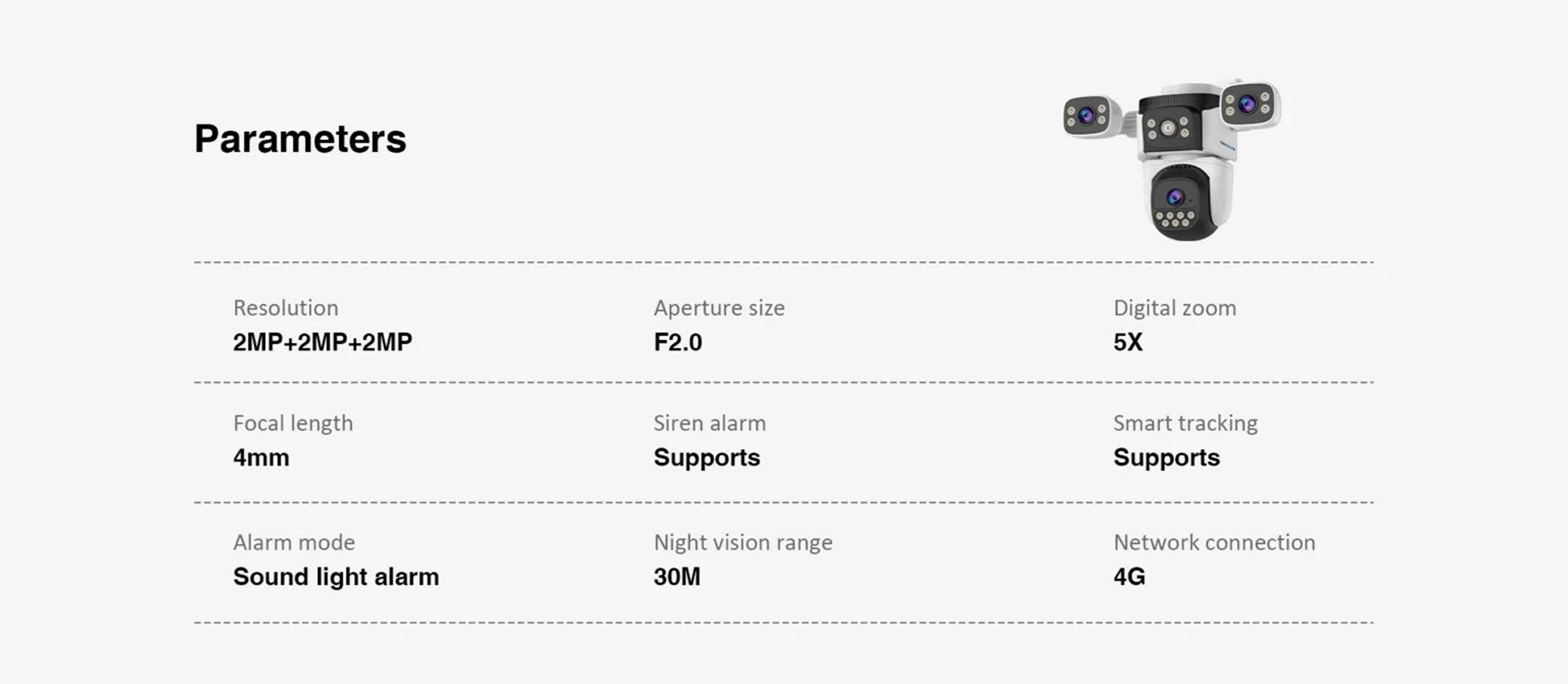

| Sorts | Type | Parameters |
| System | Operating system | Linux |
| Online visitor | Supports 4 visitors at the same time | |
| APP | TG Cam Pro | |
| Collection | CPU | Ingenic |
| Memory | 512Mb | |
| Lens | 4mm | |
| Image sensor | 1/2.7″ 1080p progressive scan CMOS sensor | |
| Min. Illumination | 0.5Lux (color mode), 0.1Lux (b&w mode) | |
| Sensor performance | Support automatic white balance, automatic gain control and automatic backlight compensation | |
| Night vision | Black and white night vision, full-color night vision | |
| Viewing angle | 91° | |
| Video | Resolution | 1080P/1920×1080/15FPS |
| Night vision | Black and white night vision, full-color night vision | |
| Compression standard | H.264 main profile/Motion-JPEG/JPEG | |
| IR control | IR-CUT, soft photosensitive control | |
| Bit rate | 128～4096kbps | |
| Image adjustment | Brightness, contrast, OSD display | |

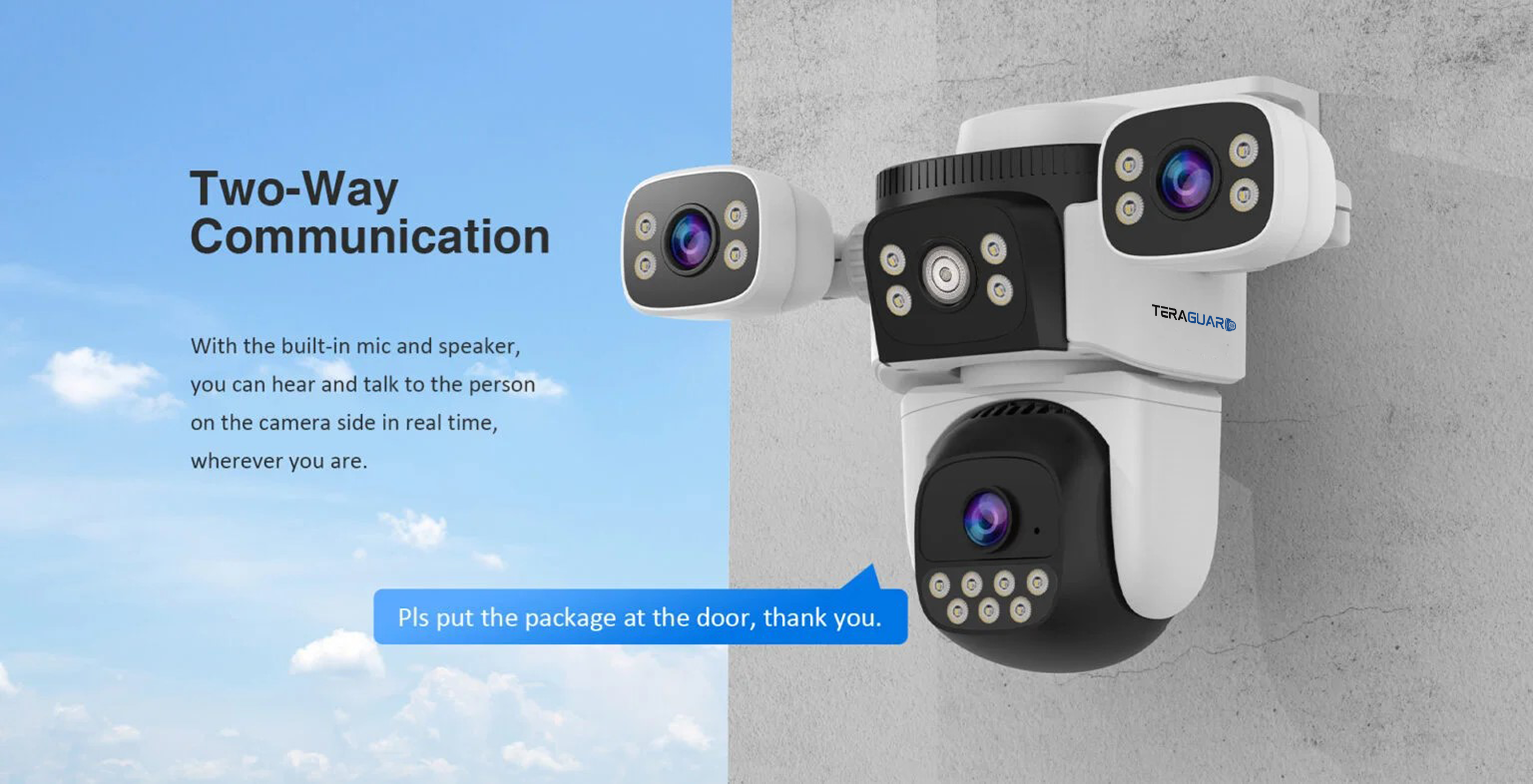

| Audio | Input | Built-in -38dB microphone |
| Output | Built-in 8Ω1W speaker | |
| Sampling frequency/bit width | 8KHz/16bit | |
| Compression standard/Bit Rate | G711A | |

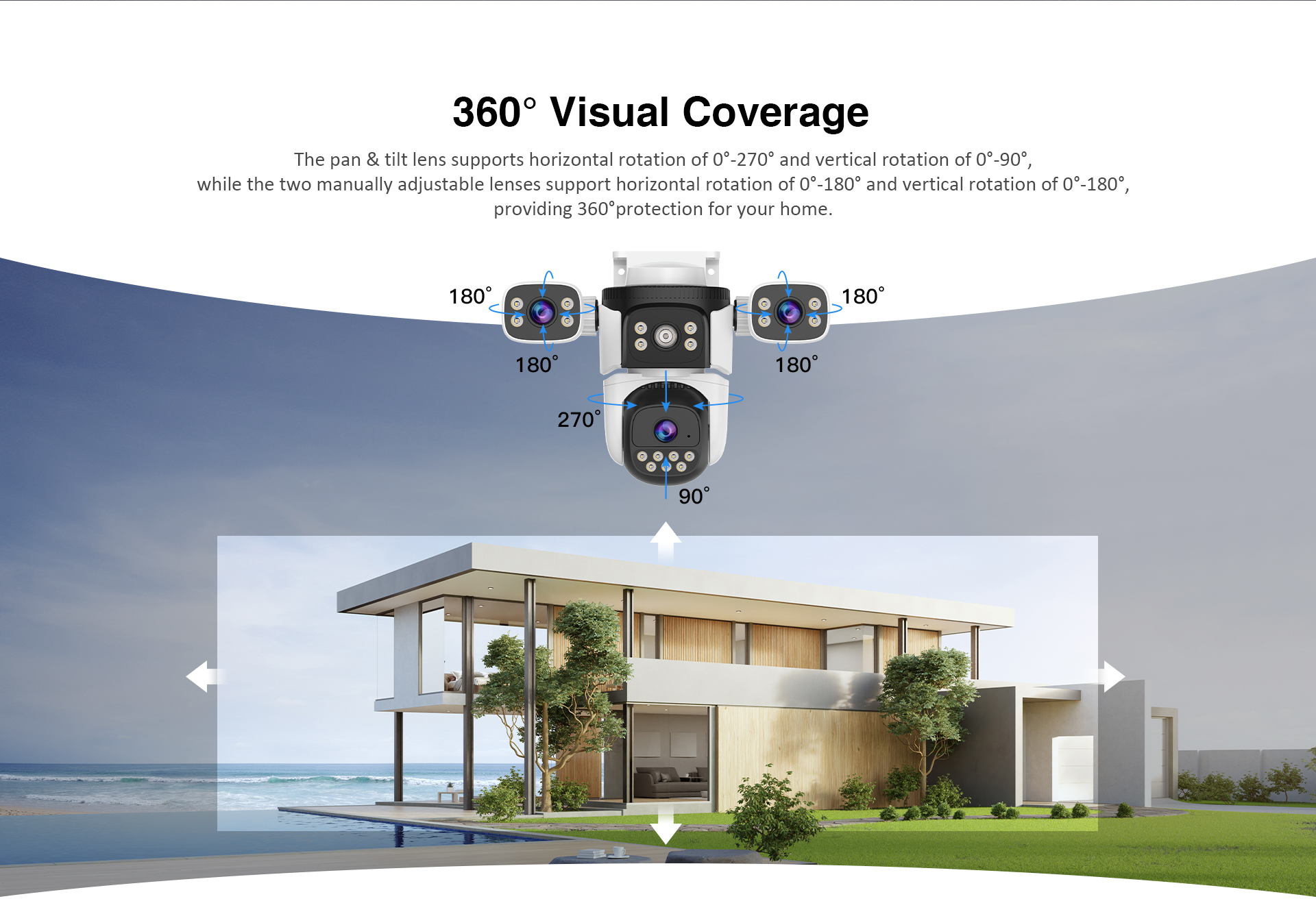

| Pan/Tilt | Rotation angle | Pan：270° Tilt：90° |
| Network | Network interface | 10Mbps/100Mbps |
| Network protocol | TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P | |

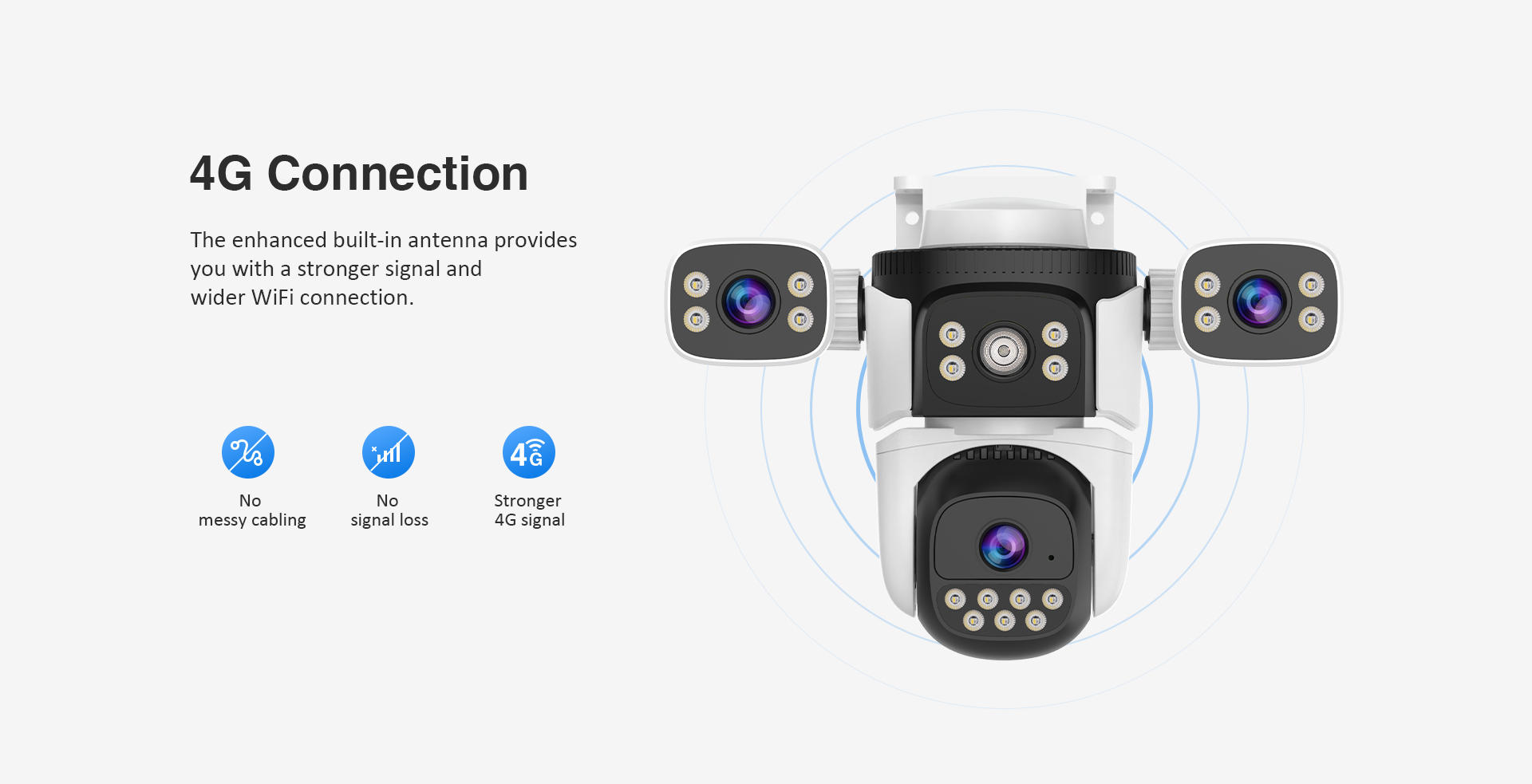

| 4G network(China) | FDD:B1/B3/B8 TDD:B34/B38/B40 | |

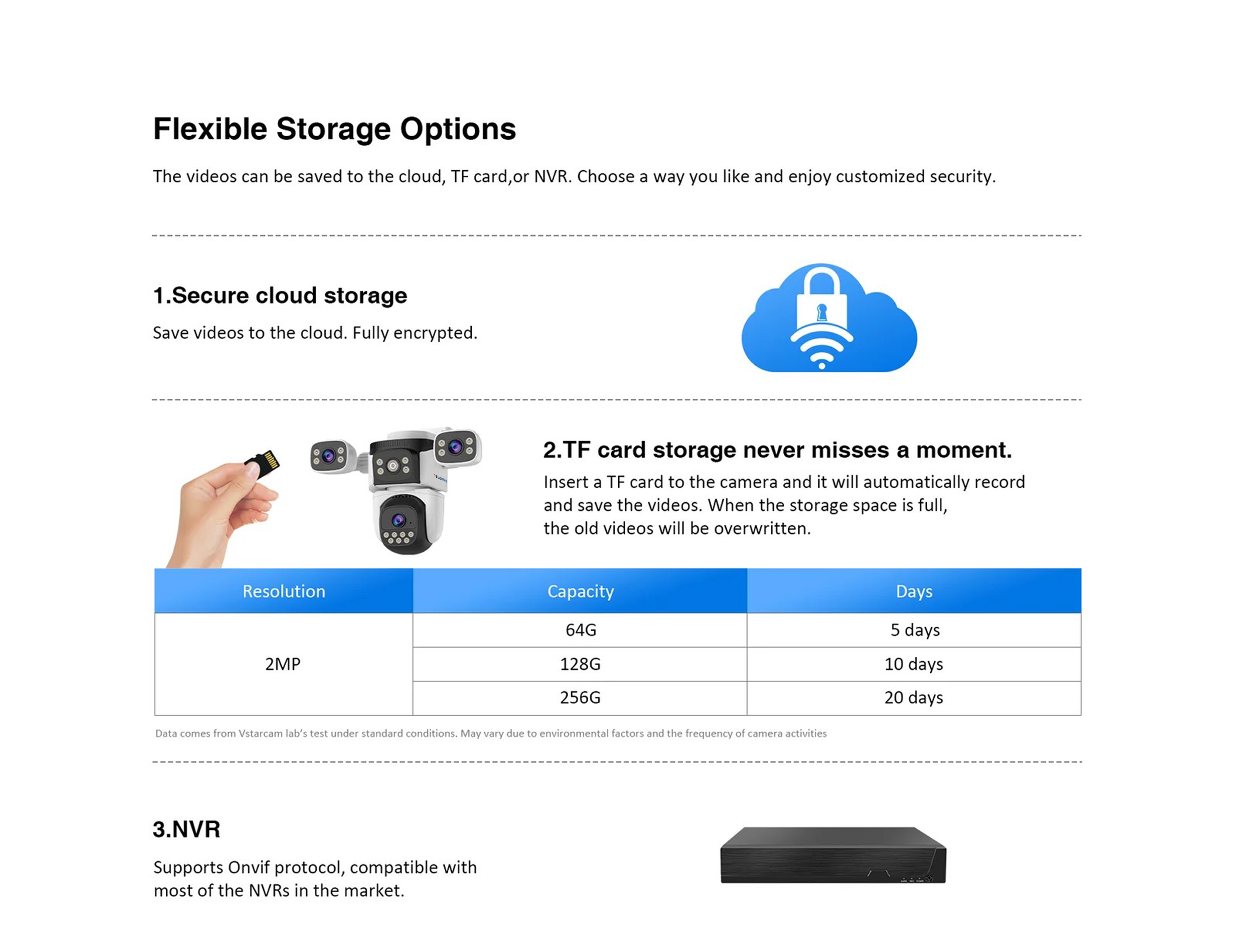

| Storage | External TF card | Supports T-Flash cards (up to 256GB) |
| Cloud storage | Support cloud storage, users can purchase according to their needs. | |

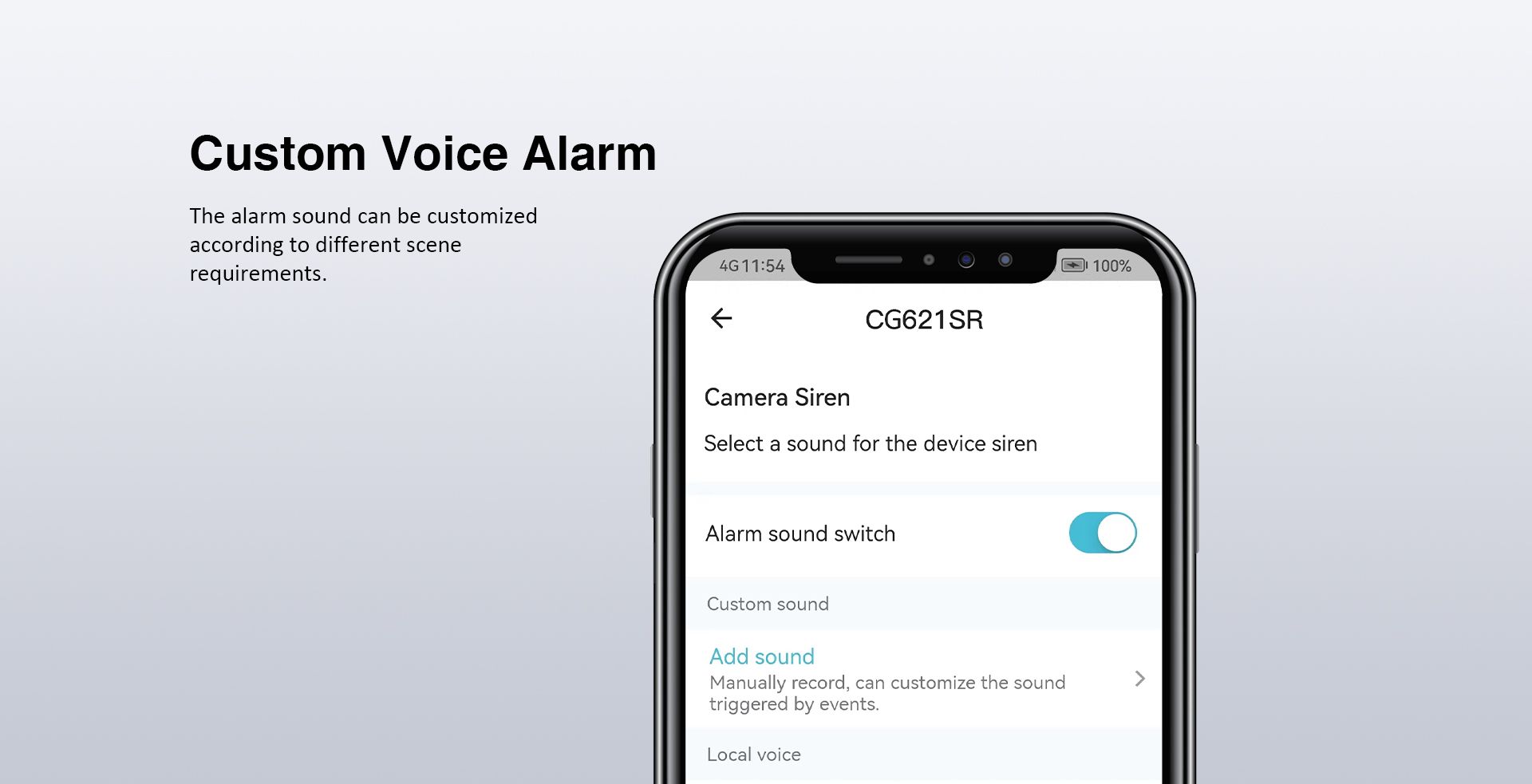

| Alarm | Alarm detection | Motion detection, human detection, human framing, siren alarm, and area detection |
| Physical Indicators | Rated voltage | DC12V±5% |
| Power consumption | Power: 7.44W (0.62A) Maximum power: 10.92W (0.91A) | |
| Operating condition | Working temperature: -10~55 ℃, working humidity<90% | |
| Weight | N.W.：600g, G.W.：1180g | |

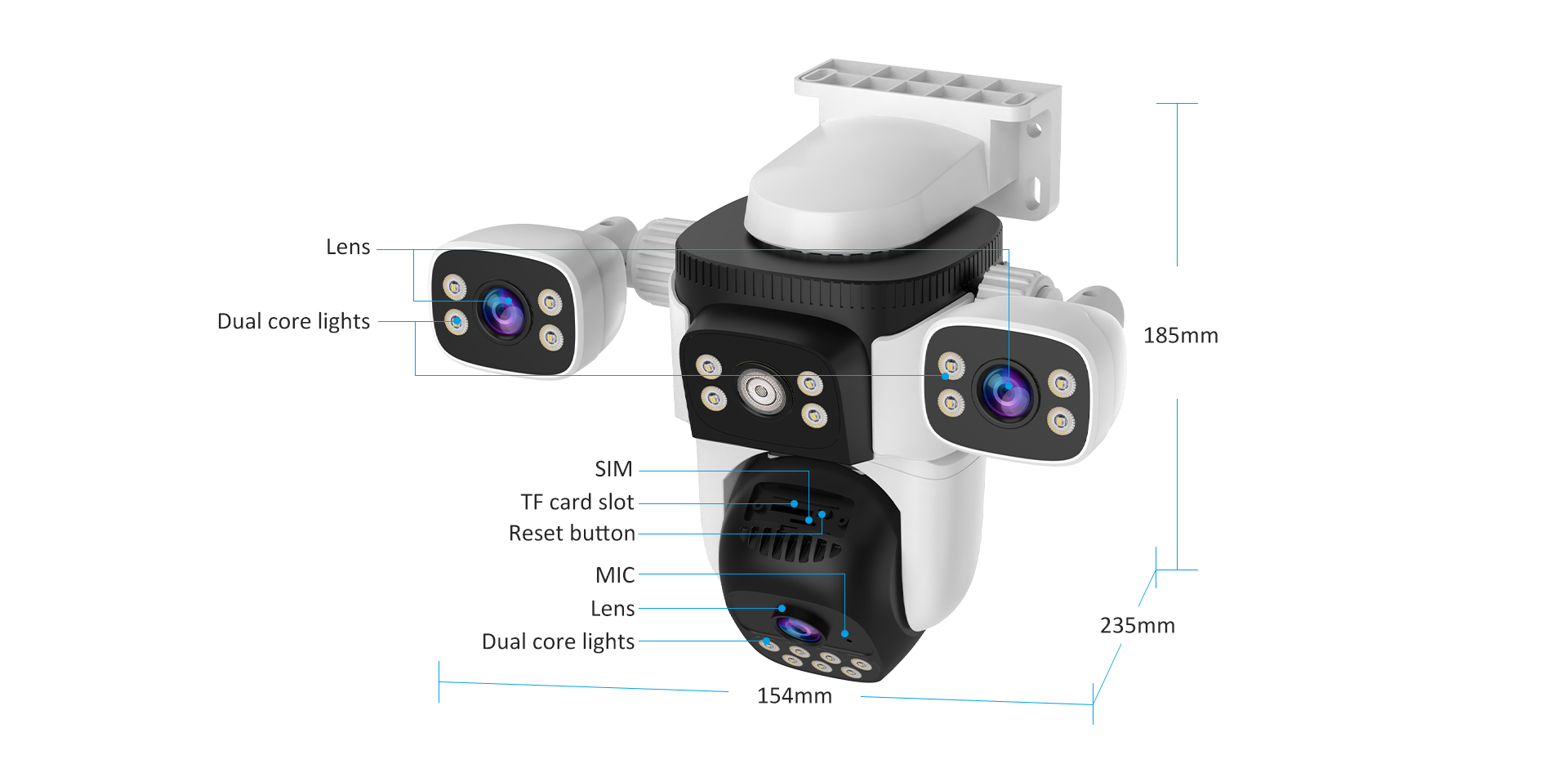

| Camera size | 154x235x185mm | |
| Packaging box size | 255x210x165mm | |
| Carton size | 525x435x525mm,12PCS/CARTON | |
