| ✮2 MP Ultra HD | ||
| ✮AI function: supports open flame detection, smoke detection, fire point recognition, smoke and flame framing | ||
| ✮Alarm voice prompt, area detection alarm, customized voice | ||
| ✮F1.6 large aperture, clearer image | ||
| ✮Soft light design, presenting a full color image in 24 hours | ||
| ✮ISP image processing technology, preserving true colors | ||
| ✮real time alerts | ||

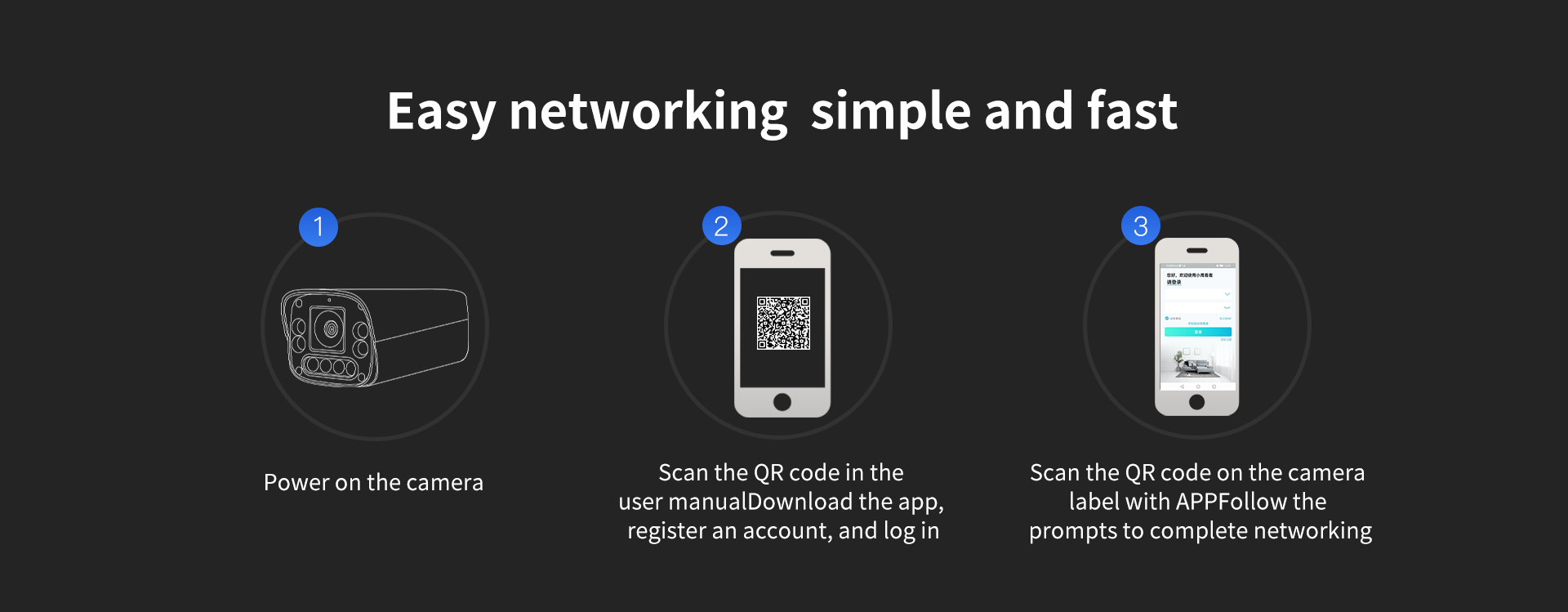

| ✮Remote access, view the monitoring areas anytime and anywhere | ||
| Sorts | Type | Parameters |
| Collection | Operating system | Linux |
| Online visitor | Supports 4 visitors at the same time | |
| APP | TG Cam Pro | |
| Collection | CPU | Ingenic T41 |
| Memory | 1Gbit | |
| Lens | 4mm /6mm F1.6 aperture | |
| Image sensor | 1/3 CMOS sensor | |
| Minimum illumination | 0.01Lux | |
| Sensor performance | Support automatic white balance, automatic gain control and automatic backlight compensation | |
| Night Vision | 4 warm lights, full color night vision | |
| Viewing angle | 4mm- diagonal 92°, 6mm- diagonal 58.3° | |
| Video | Resolution | 1920*1080P/25FPS/2 MP |
| Night Vision | Full color night vision | |
| Compression standard | H.265 /H.264 /MJPEF/JPEG | |
| IR control | No IRCUT, full color night vision, automatically adjusting the brightness of the lights according to the environment | |
| Bit rate | 128～4096kbps | |
| Image adjustment | Brightness, contrast, OSD display | |
| Audio | Input | Built-in-38dB microphone |
| Output | Built-in 8Ω2W speaker | |
| Sampling frequency/bit width | 8KHz/16bit | |
| Compression standard/Bit Rate | G711A | |

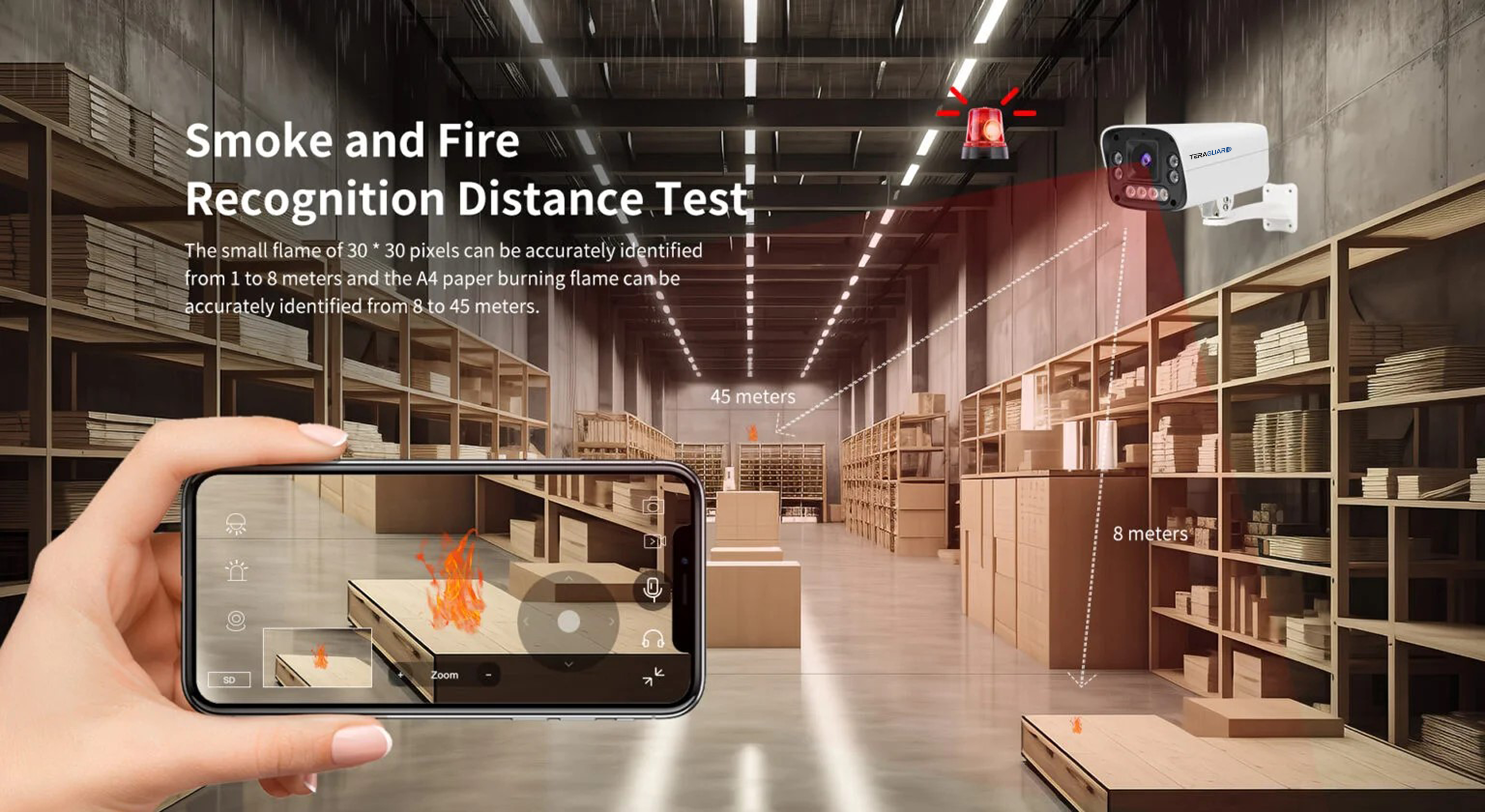

| AI | Smoke&fire detection | Flame&smoke detection and framing, directly locate the fire point; Minimum pixel of flame: 30X30 pixels, lasting for more than 3 seconds; Recognizable flame colors: infrared, orange, yellow; Recognized smoke colors: gray white, gray black; Recommended installation height: 3 meters; Detection rate: 90% |
| Alarm | Camera: Alarm voice prompt; App: real time push of alarm messages. | |
| Alarm detection | fire point detection, and smoke&fire detection. | |
| Area detection | Free smear, only monitor the areas concerned by users | |
| Smart notification sound | Different devices push different sounds, so that you can know exactly which device is triggered | |
| Intelligent alarm sound | Set different equipment alarm sounds according to different scenarios | |
| Network | Network interface | 10Mbps/100Mbps adaptive/RJ45 interface |
| Network protocol | TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P etc. | |
| 4G（China） | FDD:B1/B3/B5/B8 | |
| TDD:B34/B38/B39/B40/B41 | ||
| WCDMA:B1/B5/B8 | ||

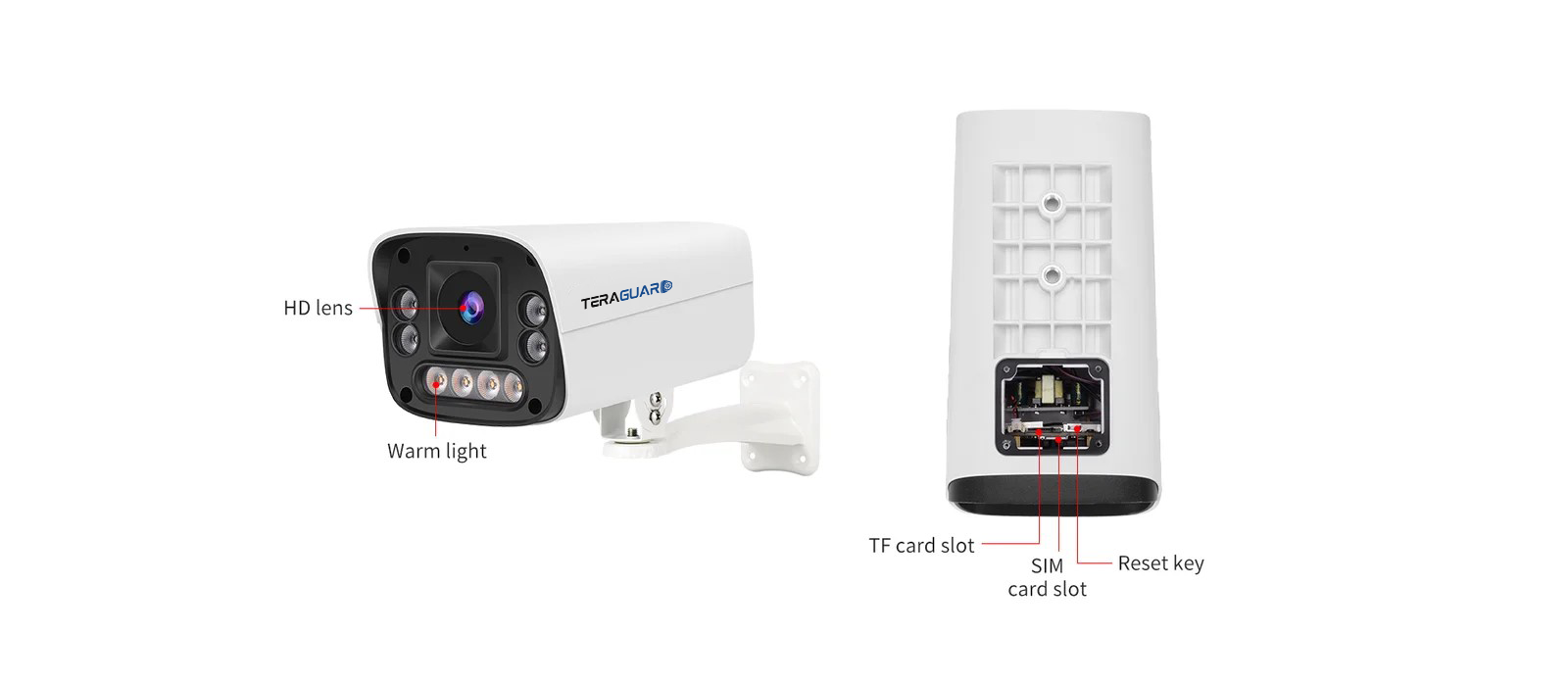

| Storage | External TF card | Support TF card (up to 256GB) |
| Cloud storage | Support cloud storage | |
| Alarm | Alarm detection | Motion detection, siren sound, and area detection |

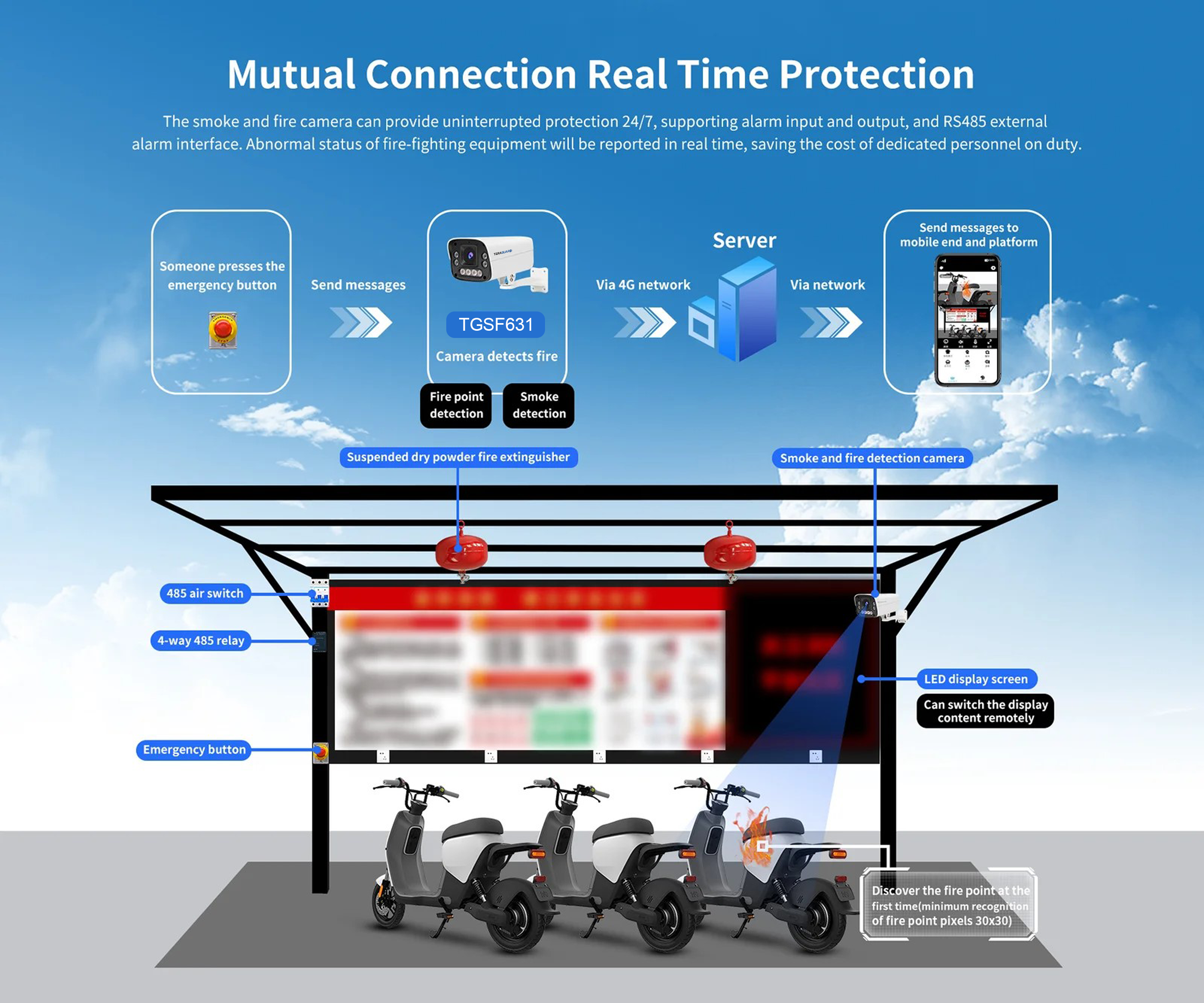

| Physical Indicators | External alarm interface | Supports alarm input and output, RS485 modbus protocol |
| Rated voltage | DC12V±5%, supports standard POE 48v | |
| Power consumption | Power: 7.7W (warm light on), maximum power: 8.8W | |
| Operating condition | Temperature: -10～50℃; Humidity: ＜90% | |
| Weight | N.W:404g, G.W:705g | |
| Size | 181*95.7*80.8mm | |
| Packing list | Camera, screw pack, allen wrench, warning sticker, screwdriver, manual | |
