| Sorts | Type | Parameters |
| System | Operating system | Embedded Linux |
| Online visitor | Supports 4 visitors at the same time | |
| Collection | CPU/Image sensor | 1/3 inch CMOS sensor |
| Minimum illumination | 0.5 Lux(Color mode), 0.1 Lux(B&W mode) | |
| Lens/Viewing angle | 4mm@F2.1/90.9°Diagonal | |

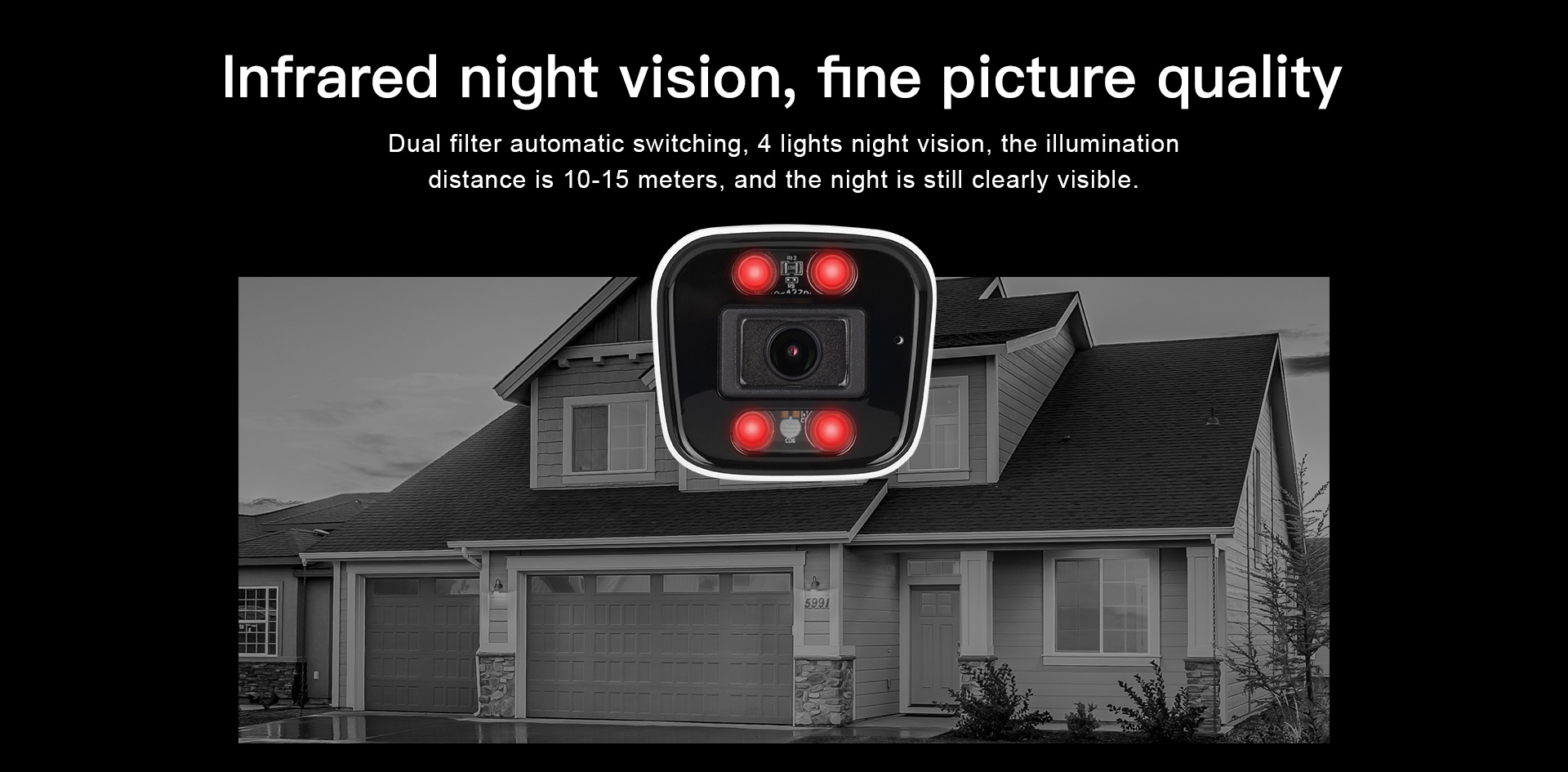

| Night Vision | IR-CUT with auto-switching, 4pcs 850nm IR LED lights, Irradiation distance 5~10 m | |
| Video | Compression standard | H.264 main profile/Motion-JPEG/JPEG |
| Data rate | Main stream: 1296p(2304×1296)@25fps | |
| Substream：360p(640×360)@25fps | ||
| Bit rate/maximum frame rate | 128～4096kbps/25fps | |
| Image adjustment | Brightness, contrast, saturation, chroma are adjustable | |
| Audio | Input | Built-in－38dB microphone |
| Output | Built-in 8Ω1.5W speaker | |
| Sampling frequency/bit width | 8KHz/16bit | |
| Compression standard/Bit Rate | G.711/32kbps | |
| Network | Network interface | 10Mbps/100Mbps self-adaptive/RJ45 Interface |
| Network protocol | TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P etc. | |
| Wireless network | IEEE802.11b/g/n | |
| Wireless frequency | 2.4GHz | |
| Wireless security encryption | 64/128-bit WEP/WPA-PSK/WPA2-PSK data encryption | |
| Storage | Storage functions | Support T-Flashcard(max256GB); Cloud storage; |

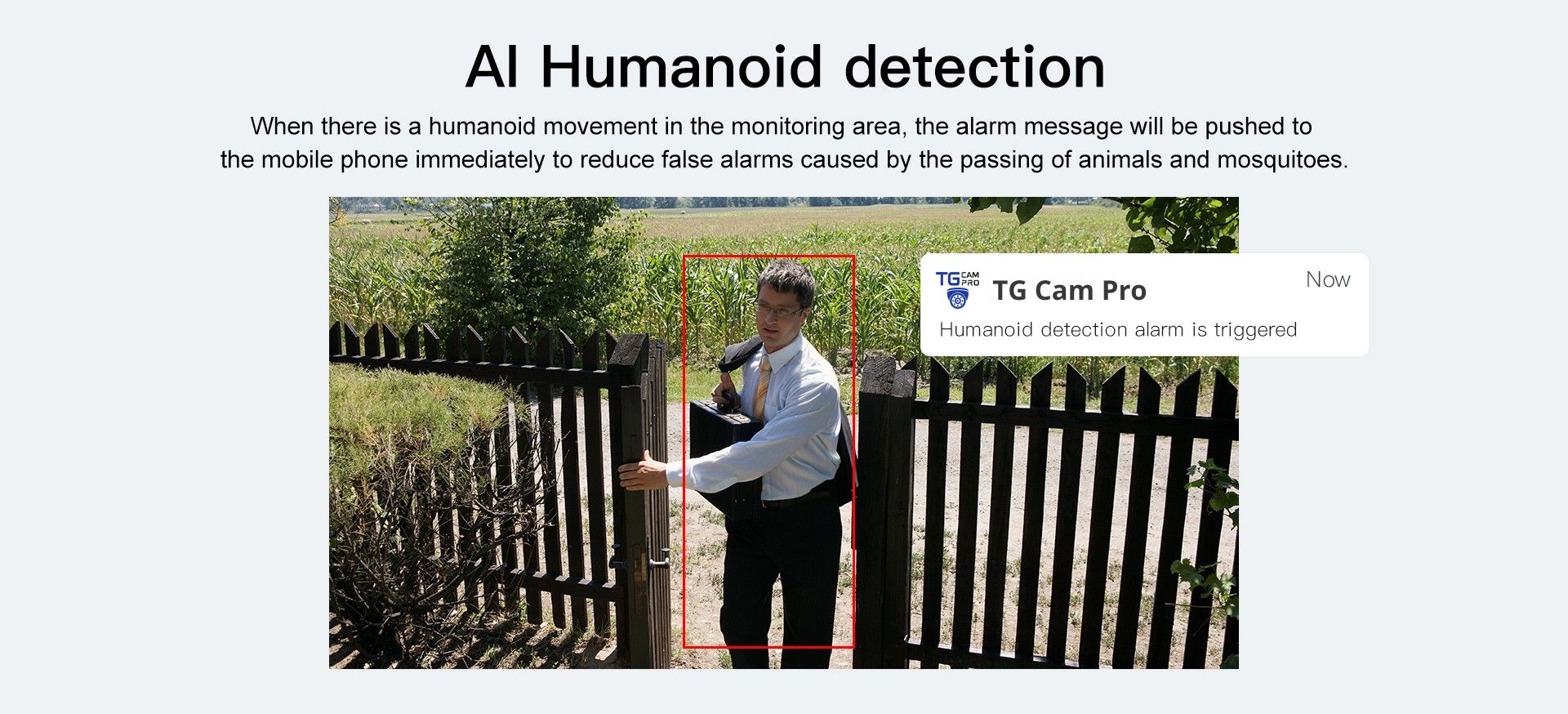

| Alarm | Alarm detection | Supports Motion detection; Humanoid detection; Humanoid tracking; Absences alarm; |
| Physical Indicators | Rated voltage | DC12V±5% |
| Power consumption | Rated power: 3.8 W(with IR LED lights ON)/ Max Power:5W | |
| Operating condition | Temperature: -10～50℃; Humidity: ＜90% | |
| Weight | N.W.: 335g（Note: in kind prevail） | |
| Packaging Size | 228x149x93mm (LxWxH) |
