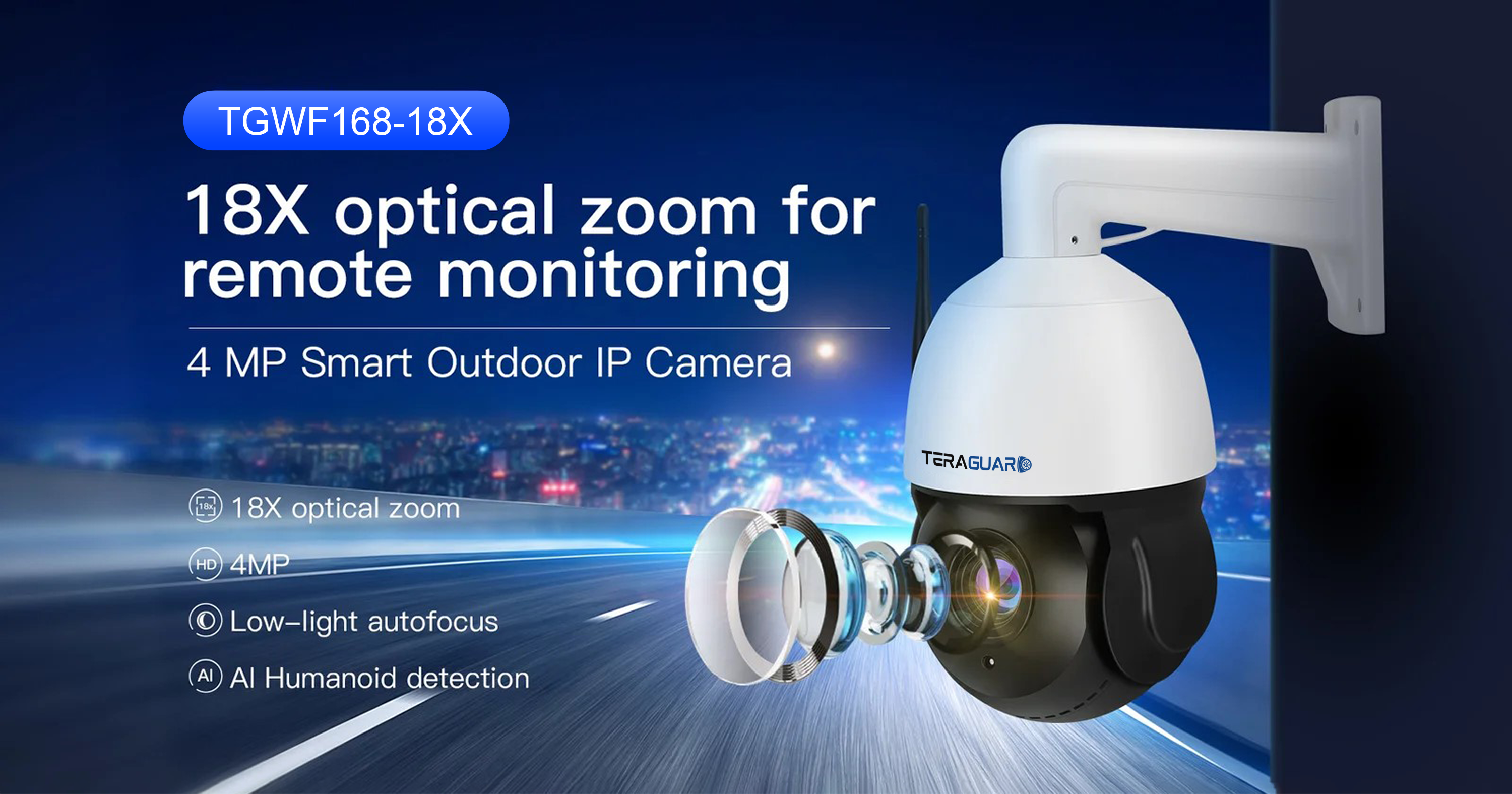

| ✮4 MP Ultra HD | ||
| ✮18x optical zoom | ||
| ✮360 ° rotation, presets cruising | ||
| ✮6 high-power infrared lights, night vision distance 100 meters | ||
| ✮ISP image processing technology, preserving true colors | ||
| ✮Human detection, real time alerts | ||

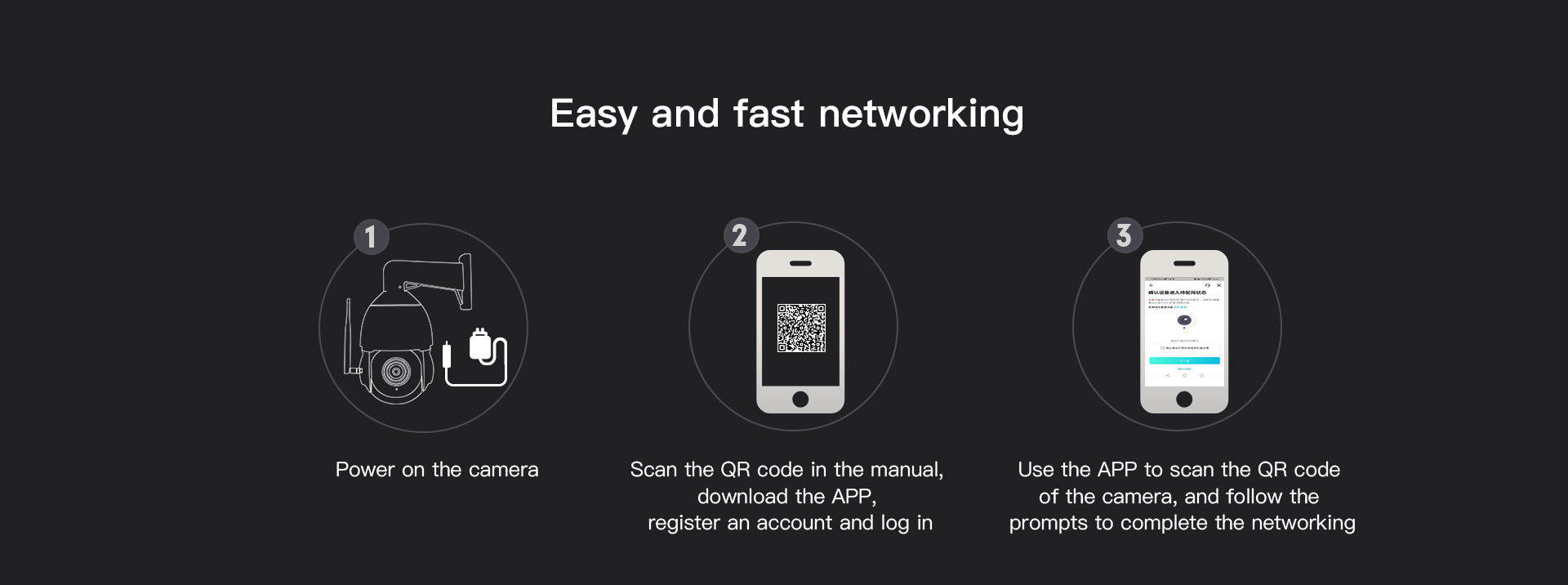

| ✮Remote access, view the monitoring areas anytime and anywhere | ||
| Sorts | Type | Parameters |
| System | Operating system | Linux |
| Online visitor | Supports 4 visitors at the same time | |
| APP | TG Cam Pro | |

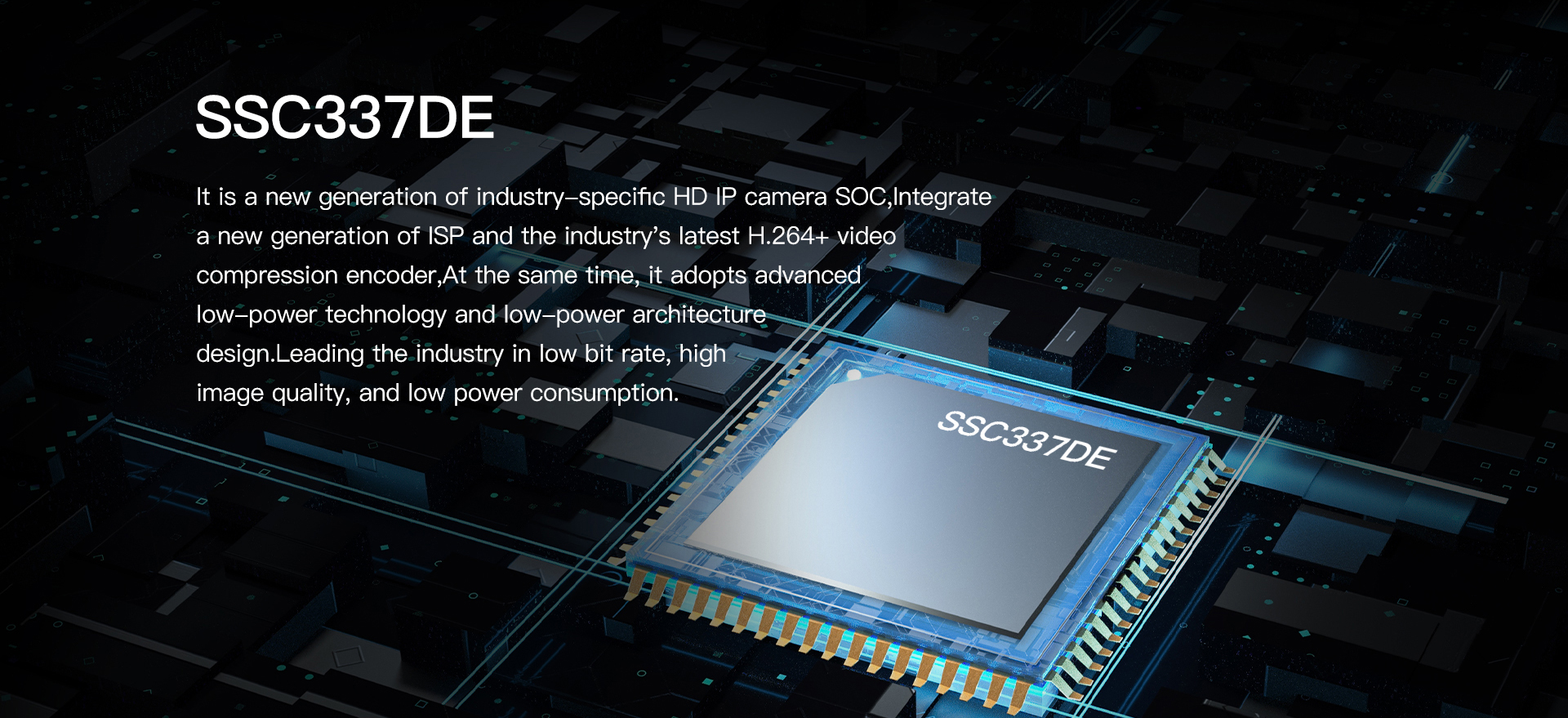

| Collection | CPU | Sigmastar |
| Memory | 1Gbit | |
| Lens | 18x optical zoom | |
| Image sensor | 1/2.9 CMOS sensor | |

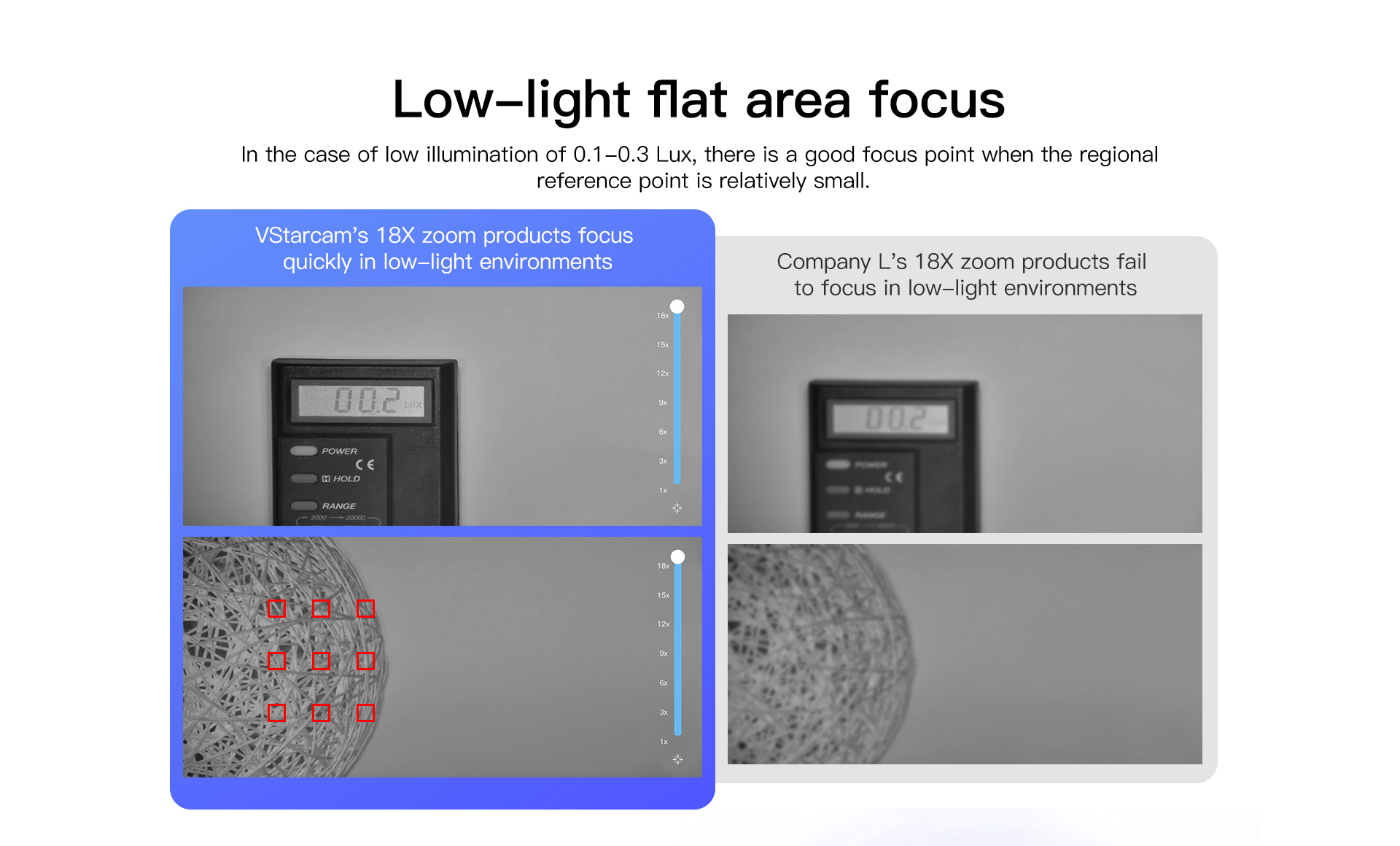

| Min. illumination | 0.5Lux (color mode), 0.1Lux (b&w mode) | |
| Sensor performance | Support automatic white balance, automatic gain control and automatic backlight compensation | |
| Night Vision | Dual filter automatic switching, 6*850nm infrared lamps, illumination distance 100 meters | |

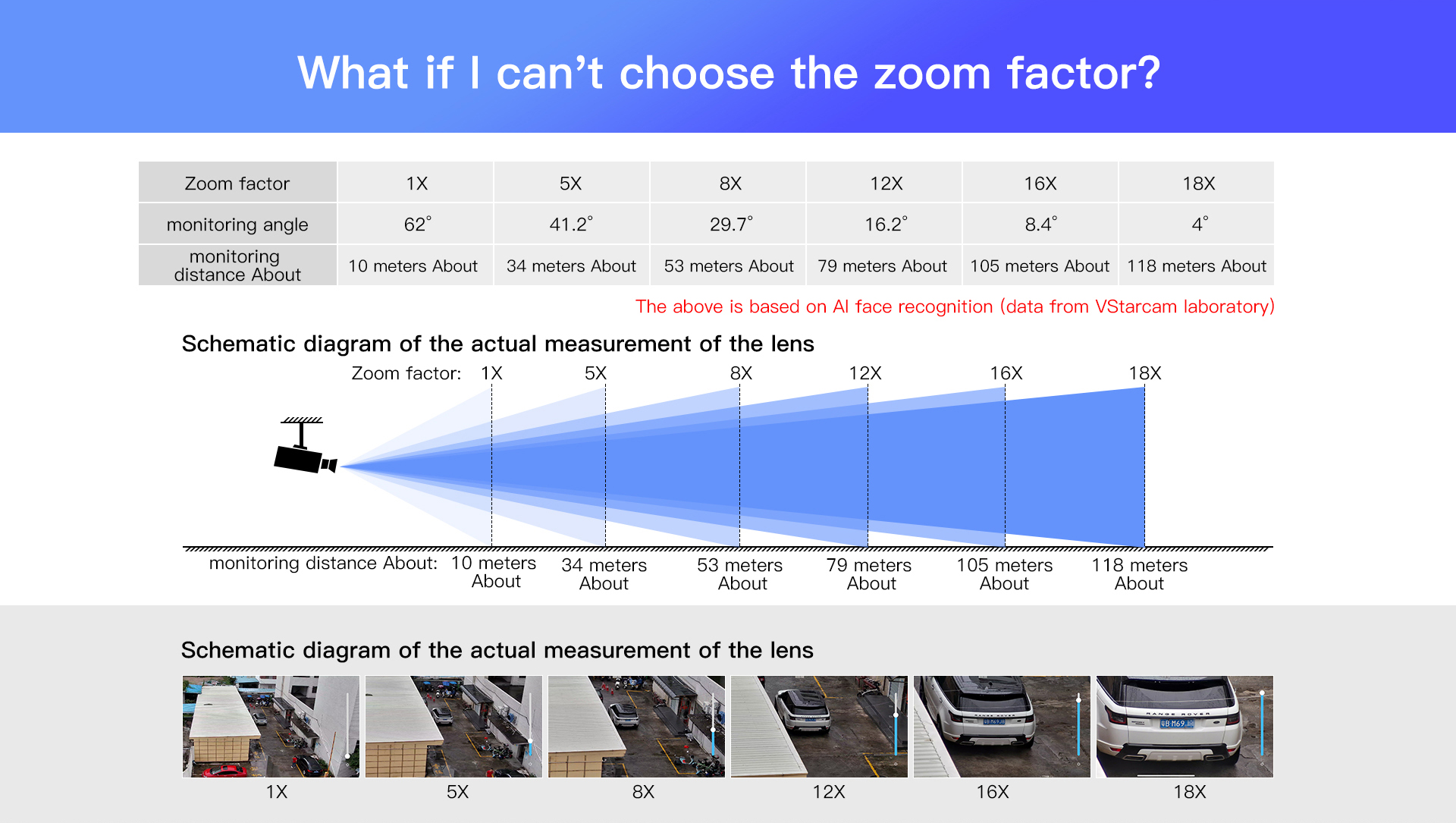

| Viewing angle | 5.9mm～94.4mm varifocal lens/Diagonal viewing angle 62°@1X – 4°@18X | |
| Video | Resolution | 2688*1520P/25FPS/4 MP |
| Compression standard | H.264+ /H.264 /MJPEF/JPEG | |
| Bit rate | 128～4096kbps | |
| Image adjustment | Brightness, contrast, OSD display | |

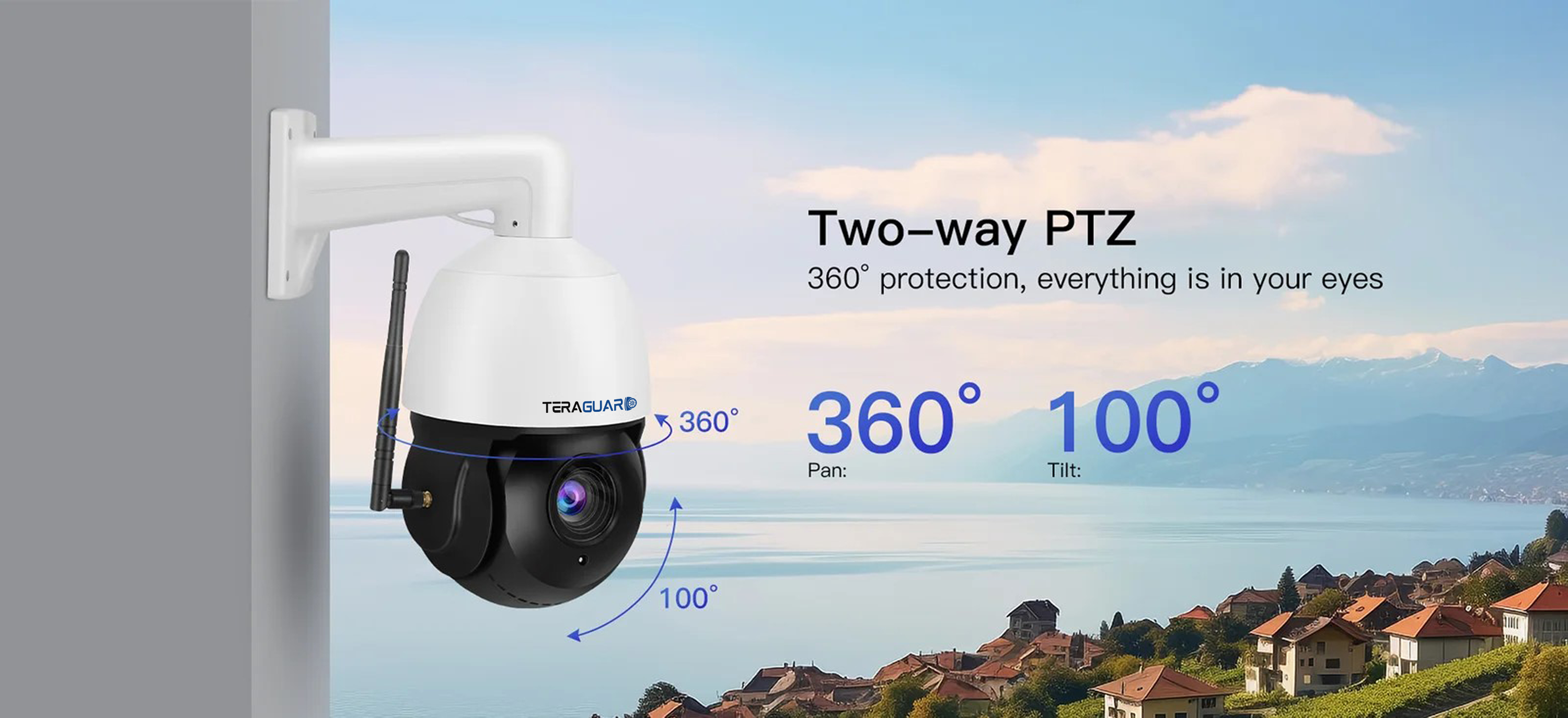

| PTZ | Rotation angle | Horizontal 360°/Vertical 95° |
| Preset position | Supports 16 presets (mobile app only supports 5) | |

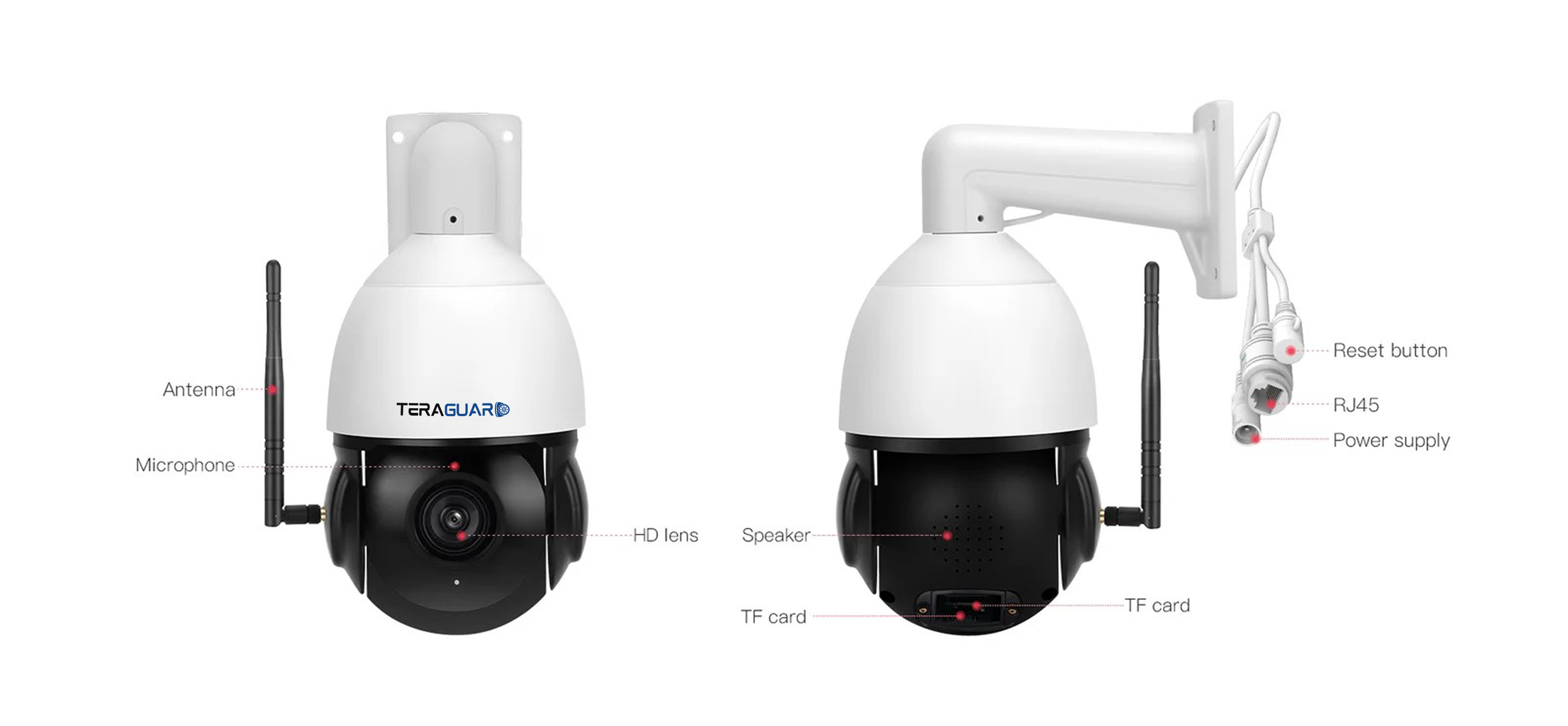

| Audio | Input | Built-in-38dB microphone |
| Output | Built-in 8Ω2W speaker | |
| Sampling frequency/bit width | 8KHz/16bit | |
| Compression standard/Bit Rate | G711A | |
| AI | Humanoid detection | Humanoid detection, filtering invalid video events |
| Human tracking | When the camera detects a person, it will automatically zoom in and follow their trajectory. | |
| Area detection | Free daub, only monitoring the areas concerned by users | |
| Smart notification sound | Different devices push different sounds, so that you can know exactly which device is triggered | |
| Intelligent alarm sound | Set different equipment alarm sounds according to different scenarios | |

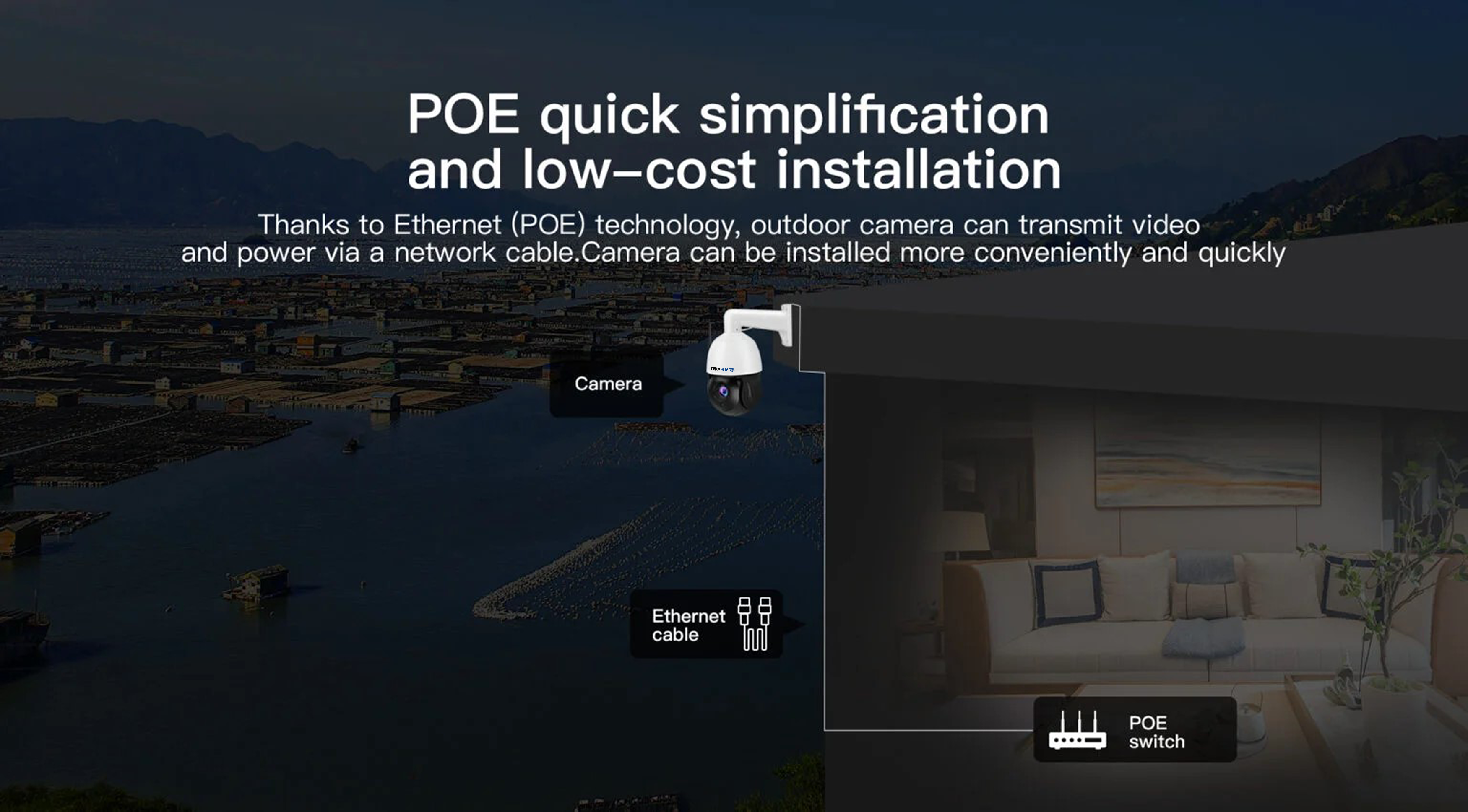

| Network | Network interface | 10Mbps/100Mbps adaptive/RJ45 interface |
| Network protocol | TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P | |
| Wireless network | IEEE802.11b/g/n/ax | |
| Wireless frequency | 2.4GHz(WIFI6) | |
| Wireless security encryption | 64/128-bit WEP/WPA-PSK/WPA2-PSK data encryption | |
| Storage | TF card | Supports T-Flash cards (up to 256GB) |
| Cloud storage | Support cloud storage, users can purchase according to their needs. | |
| Alarm | Alarm detection | Motion detection, human detection, human framing, human tracking, siren sound, and area detection |
| Physical Indicators | Rated voltage | DC12V±5% |
| Power consumption | Power: 11.1W (with infrared light on) Maximum power: 16.6W | |
| Operating condition | Working temperature: -10~55 ℃, working humidity<90% | |
| Weight | Net weight: 1590g; Gross weight: 2190g; | |
| Product size | 198x136x247mm; | |
| Packing size | 280x230x155mm | |

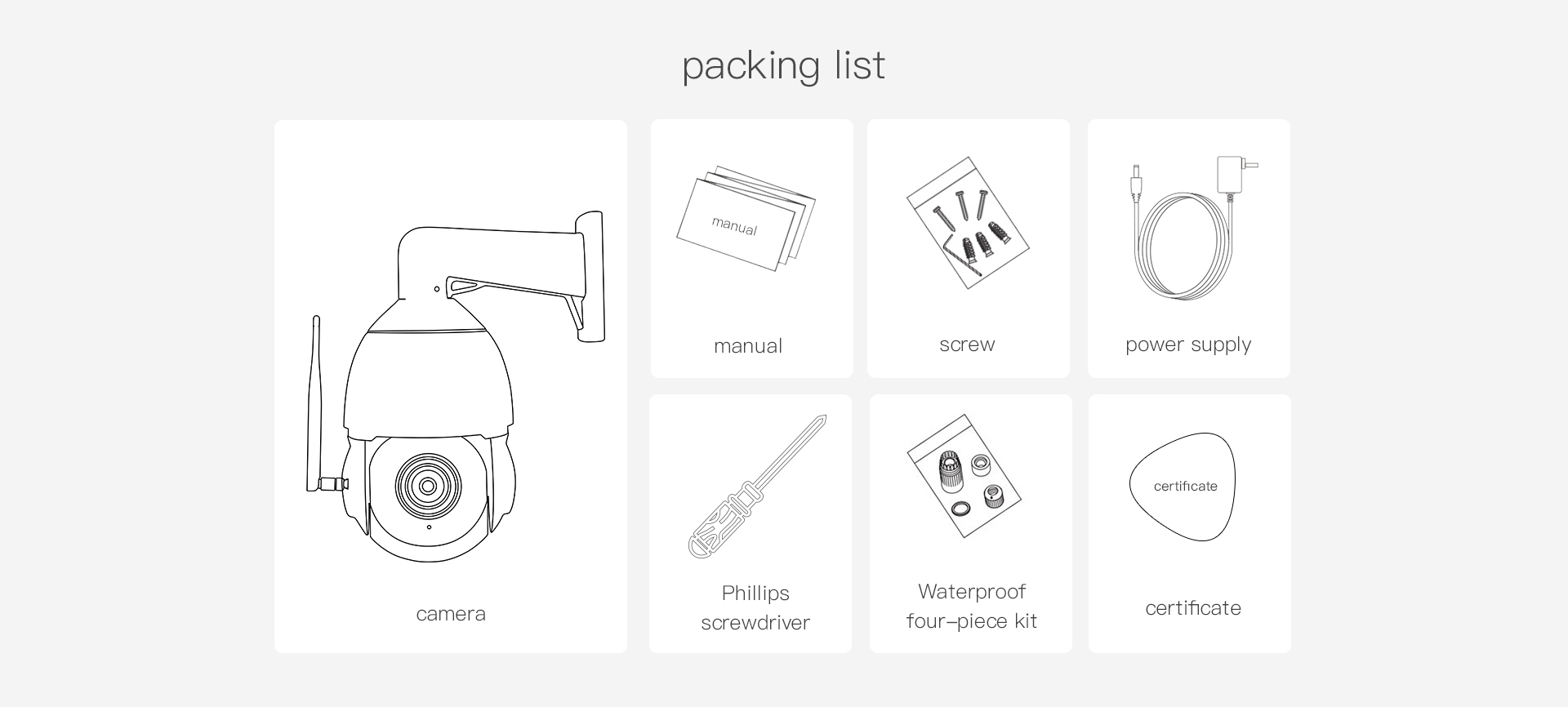

| Packing list | Camera, screw pack, warning sticker, screwdriver, user manual | |
